Multisite spatial rainfall HMM with Gaussian conditional dependence

This tutorial describes the spatial HMM model for multisite rainfall occurrences. It extends this tutorial by replacing conditionally independent Bernoulli emissions at each station with a SpatialBernoulli copula model that captures spatial dependence between stations via an exponential covariance kernel.

It is based on the paper Spatio-temporal generation of precipitation using a Hidden Markov Model, extended extreme distributions and conditional Gaussian fields.

Here, the model is fixed to K = 4 hidden states and local_order = 1 (one day of local memory). It is applied to the same set of 10 stations in France as in the previous tutorial. However, contrary to the previous model where conditional independence was assumed, implying that stations would be far enough apart, here it is possible to use stations that are closer together.

Set up

Package and functions

using CSV, DelimitedFiles # File Read/Load/Save

using JLD

using DataFrames, DataFramesMeta # DataFrames

using Dates

using StatsBase, Random

using Distributions

The main package is StochasticWeatherGenerators.jl, which provides the interface to the models and data. SmoothPeriodicStatsModels.jl contains the smooth periodic models used in this tutorial, in particular the ARPeriodicHMMSpatial model and its fitting routines.

using StochasticWeatherGenerators # interface to use with SmoothPeriodicStatsModels.jl

using SmoothPeriodicStatsModels # Small collection of smooth periodic models e.g. AR, HMM, HMMSpatial
using OptimizationOptimJL, LineSearches
Random.seed!(123)
Random.TaskLocalRNG()

Settings for plotting

Some settings and packages to have nice plots.

using StatsPlots, LaTeXStrings
using StatsPlots.PlotMeasures # To play with margin in Plots

gr() # plotly() # for interactive plots
default(fontfamily="Computer Modern")
cur_colors = get_color_palette(:auto, 100);
my_palette(K) = palette(vcat(cur_colors[1], [cur_colors[c] for c in 3:4], cur_colors[2]), K)

file_for_plot_utilities = download("https://raw.githubusercontent.com/dmetivie/StochasticWeatherGenerators.jl/master/examples/utilities_plot.jl")
include(file_for_plot_utilities)
cyclic (generic function with 1 method)

To plot maps, we use GeoMakie.jl + NaturalEarth.jl.

file_for_maps_with_geomakie = download("https://raw.githubusercontent.com/dmetivie/StochasticWeatherGenerators.jl/master/examples/utilities_geo_makie_features.jl") # download file from a GitHub repo
include(file_for_maps_with_geomakie)
savefigcrop (generic function with 4 methods)

Global Parameters

The period of the Seasonal HMM is chosen as the number of days in a year. Our choice is 366 however we carefully skip February 29 when needed.

T = 366
366

Define the French area for map (Longitude and latitude) plot and the precision of the map precision_scale

precision_scale = 50 # meter

LON_min = -5 # West

LON_max = 10 # East

LAT_min = 41 # South

LAT_max = 52 # North
52

HMM Hyperparameters

Number of hidden states

K = 4

my_pal = my_palette(K); # just colors I like for plotting weather regime!

Degree 𝐃𝐞𝐠 of the trigonometric expansion

𝐃𝐞𝐠 = 1
1

Local memory order i.e. at station $j$, $\mathbb{P}(Y_n^{(j)} = y_n^{(j)} \mid Z = k, Y_{n-1:n-\texttt{local memory}}^{(j)} = y_{n-1:n-\texttt{local memory}}^{(j)})$

local_order = 1

size_order = 2^local_order
2

Initial range parameter $R_0$ for the exponential covariance kernel of the SpatialBernoulli distribution (in km).

R0 = [400, 400, 300, 200]
4-element Vector{Int64}:
 400
 400
 300
 200

Distance threshold fraction used to build the neighborhood weight matrix wp (only pairs of stations closer than tdist * max_distance are considered).

tdist = 0.3
0.3

Number of quasi-Monte Carlo samples for the multivariate normal CDF estimation in the spatial likelihood.

QMC_m = 30

println("K = $K, ", "degree = $𝐃𝐞𝐠, ", "local_order = $local_order")
K = 4, degree = 1, local_order = 1

Data

Select relevant stations from the station.txt file

Here we

  • Remove white space at the right of the CN, STANAME which is caused by imperfect CVS importation
  • Select only the stations with 100% valid data for the period Date(1955,12,31) .≤ :DATE .≤ Date(2019,12,31)
  • Shorten station names
begin
    station_file = Base.download("https://raw.githubusercontent.com/dmetivie/StochasticWeatherGenerators.jl/master/weather_files/stations.txt")
    station_all = CSV.read(station_file, DataFrame, header=18, normalizenames=true, ignoreemptyrows=true)
    station_all = @chain station_all begin
        @transform(:CN = rstrip.(:CN), :STANAME = rstrip.(:STANAME))
        @subset(:STAID .∈ tuple([32, 33, 34, 36, 39, 203, 322, 323, 434, 736, 737, 738, 740, 742, 745, 749, 750, 755, 756, 757, 758, 786, 793, 2192, 2203, 2205, 2207, 2209, 11244, 11245, 11247, 11249]))
        @transform(:STANAME = shortname.(:STANAME))
    end
end

selected_station_name = ["BOURGES", "TOULOUSE", "MARIGNANE", "LUXEMBOURG", "LILLE", "EMBRUN", "BASTIA", "LA HAGUE", "CHASSIRON", "ORLY"]

station = @subset(station_all, :STANAME .∈ tuple(selected_station_name))

STAID = station.STAID

station_name = station.STANAME
10-element Vector{SubString{String}}:
 "BOURGES"
 "TOULOUSE"
 "MARIGNANE"
 "LUXEMBOURG"
 "LILLE"
 "EMBRUN"
 "BASTIA"
 "LA HAGUE"
 "CHASSIRON"
 "ORLY"

Sort stations (index) by latitude. It is useful for plotting from North to South.

staid_lat = sortperm(station.LAT, rev=true);

Station number

D = length(STAID)
10

Pairwise distance matrix

Convert LAT/LON coordinates from DMS to DD (decimal degrees).

LAT_idx = dms_to_dd.(station.LAT)

LON_idx = dms_to_dd.(station.LON)
10-element Vector{Float64}:
  2.3594444444444447
  1.3788888888888888
  5.215833333333333
  6.203333333333333
  3.0975
  6.501944444444445
  9.485277777777776
 -1.9394444444444445
 -1.4116666666666666
  2.3841666666666668

Build the pairwise distance matrix my_distance (in km) between stations using the haversine formula.

my_locations = hcat(LON_idx, LAT_idx) # (D × 2) matrix: [longitude, latitude]
10×2 Matrix{Float64}:
  2.35944  47.0592
  1.37889  43.6208
  5.21583  43.4378
  6.20333  49.6258
  3.0975   50.57
  6.50194  44.5656
  9.48528  42.5406
 -1.93944  49.7253
 -1.41167  46.0467
  2.38417  48.7167

We define the haversine great-circle distance (in km) and build the $D \times D$ distance matrix.

function haversine_km(coords1, coords2; R=6371.0)
    lon1, lat1 = deg2rad(coords1[1]), deg2rad(coords1[2])
    lon2, lat2 = deg2rad(coords2[1]), deg2rad(coords2[2])
    dlat = lat2 - lat1
    dlon = lon2 - lon1
    a = sin(dlat / 2)^2 + cos(lat1) * cos(lat2) * sin(dlon / 2)^2
    return 2R * asin(sqrt(a))
end

my_distance = [haversine_km(my_locations[i, :], my_locations[j, :]) for i in 1:D, j in 1:D]
10×10 Matrix{Float64}:
   0.0    389.922  460.523  402.595   394.104  …   434.196  309.524  184.315
 389.922    0.0    309.971  762.243   783.528      724.274  348.062  571.88
 460.523  309.971    0.0    692.197   809.078      886.754  598.167  626.188
 402.595  762.243  692.197    0.0     245.127      585.738  693.325  295.441
 394.104  783.528  809.078  245.127     0.0        370.912  603.231  212.383
 424.112  422.323  162.193  563.13    714.653  …   857.381  640.118  558.275
 753.465  668.949  361.263  827.296  1016.8       1186.43   949.826  880.402
 434.196  724.274  886.754  585.738   370.912        0.0    410.929  333.376
 309.524  348.062  598.167  693.325   603.231      410.929    0.0    411.993
 184.315  571.88   626.188  295.441   212.383      333.376  411.993    0.0

Date range

date_start = Date(1956)
1956-01-01

Date including the previous days used in the initial condition (in case local_memory > 0)

date_start_w_memory = date_start - Day(local_order)

date_end = Date(2020) - Day(1)

every_year = date_start:Day(1):date_end

every_year_w_memory = date_start_w_memory:Day(1):date_end

n2t = dayofyear_Leap.(every_year)

N = length(n2t)
23376

Treat data

Load into a DataFrame the (ECA) RR files (rain). It filters by date and valid data. It also adds a column :RO for rain occurrences (0: dry, 1: wet).

begin
    data_stations = collect_data_ECA.(STAID, date_start_w_memory, date_end, "https://raw.githubusercontent.com/dmetivie/StochasticWeatherGenerators.jl/master/weather_files/ECA_blend_rr/RR_", portion_valid_data=1, skipto=22, header=21, url=true)
    for i = eachindex(data_stations)
        @transform!(data_stations[i], :RO = onefy.(:RR))
    end
end

Binary matrix version of the rain event at the D stations.

Yall = BitMatrix(reduce(hcat, [data_stations[j].RO for j = 1:D]))

Y_past = BitMatrix(Yall[1:local_order, :]) # rand(Bool, local_order, D)

ξ = [1; zeros(K - 1)];  # 1 jan 1956 was most likely a type Z = 1 wet day all over France

Y = Yall[1+local_order:end, :]
23376×10 BitMatrix:
 1  1  1  1  1  1  1  1  1  1
 1  1  0  1  1  0  1  0  1  0
 0  0  0  0  0  0  1  0  0  0
 0  0  0  0  0  0  0  0  0  0
 0  0  0  0  0  0  0  0  0  0
 0  1  1  0  0  0  0  0  0  1
 1  1  1  0  1  0  1  1  1  1
 1  1  1  1  1  1  0  0  1  1
 0  1  1  1  1  1  1  1  1  0
 1  0  0  1  1  1  0  1  1  1
 ⋮              ⋮
 1  1  0  1  1  1  0  1  1  1
 1  0  0  1  1  0  0  0  0  0
 0  0  0  1  0  0  0  1  1  0
 1  0  0  1  1  0  0  1  0  1
 1  0  0  1  0  0  0  0  0  0
 0  0  0  0  0  0  0  0  1  0
 0  0  0  0  1  0  0  0  1  0
 0  0  0  0  0  0  0  0  1  0
 0  0  0  0  0  0  0  0  1  0

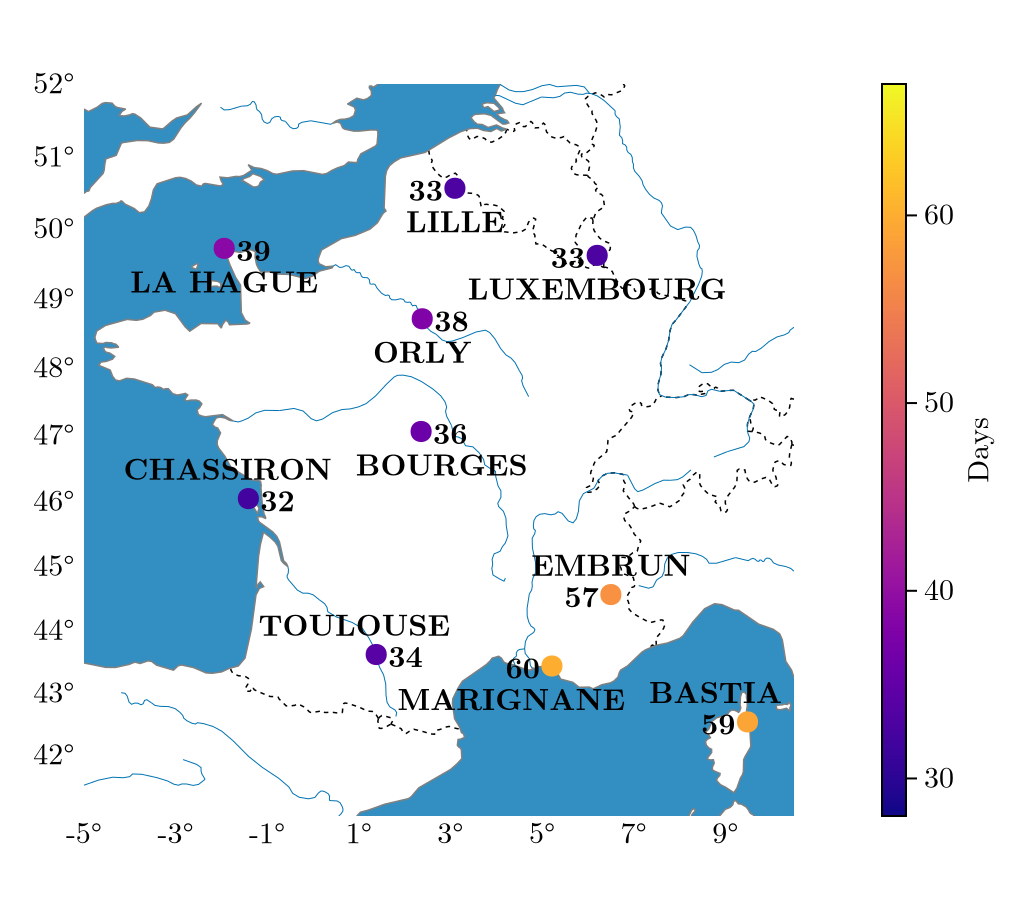

Map of stations

long_spell = [longuest_spell(y) for y in eachcol(Y)]

FR_map_spell = map_with_stations(LON_idx, LAT_idx, long_spell; station_name=station_name, show_value=true, colorbar_show=true, precision_scale=precision_scale, colorbar_label="Days")
Example block output

Step 1: Fit the non-spatial seasonal HMM

We first fit the standard (non-spatial) autoregressive periodic HMM using the Baum-Welch EM algorithm. The result provides the transition parameters θᴬ and the Bernoulli emission parameters θᴮ, which serve as the starting point for the spatial extension.

Fit slice: naive estimation

Note

Before inferring the HMM parameters with the EM (Baum-Welch) algorithm, we do a first naive inference that will be used as initial condition for the EM.

The reference station ref_station is used to sort the hidden states obtained via the slice initialisation. Here we choose j=1 $\to$ STAID=32 $\to$ BOURGES because it is a central station for France.

ref_station = 1
1

The following code loads the HMM fitted in the previous tutorial Multisite HMM with independent Bernoulli emissions. It will be used as the initial condition for the spatial HMM fitting.

hmm_ind_infos = JLD.load(joinpath(pkgdir(StochasticWeatherGenerators), "assets", "tuto_1", "hmm_fit_K_4_d_1_m_1.jld"))

hmm_ind = hmm_ind_infos["hmm"]
hist_ind = hmm_ind_infos["hist"]
θq_fit_ind = hmm_ind_infos["Q_param"]
θy_fit_ind = hmm_ind_infos["Y_param"];

The Spatial model need also the range parameter θᴿ for the exponential covariance kernel of the SpatialBernoulli distribution. The range parameter trigonometric coefficients θᴿ are initialised with a constant $\log(R_0)$, which corresponds to a time-invariant spatial range of $R_0$ km.

size_degree_of_P = 2 * 𝐃𝐞𝐠 + 1

θᴿ = zeros(K, size_degree_of_P)
θᴿ[:, 1] .= log.(R0)
4-element view(::Matrix{Float64}, :, 1) with eltype Float64:
 5.991464547107982
 5.991464547107982
 5.703782474656201
 5.298317366548036

Build the initial ARPeriodicHMMSpatial

The function Trig2ARPeriodicHMMSpatial converts trigonometric coefficient arrays into the model matrices A (transition), B (Bernoulli probabilities) and R (spatial range), and returns an ARPeriodicHMMSpatial object.

hmm_spa_init = Trig2ARPeriodicHMMSpatial(fill(1 / K, K), θq_fit_ind, θy_fit_ind, θᴿ, T, my_distance)
ARPeriodicHMMSpatial{Float64, Matrix{Float64}}([0.25, 0.25, 0.25, 0.25], [0.5868668408587475 0.1928671335456206 0.1728993870023848 0.047366638593247114; 0.27597478926511165 0.4722340192478287 0.07708716933108992 0.17470402215596964; 0.18794832946522635 0.12398289093908083 0.5045183073094124 0.18355047228628035; 0.04680120290704497 0.17755340772348222 0.08096831926821985 0.6946770701012529;;; 0.587786825713534 0.19234608241730602 0.17265160720975595 0.04721548465940398; 0.2761458281730326 0.47199154006611443 0.0771993838265445 0.17466324793430857; 0.18768201945009894 0.12367549022923353 0.5050775685984038 0.18356492172226369; 0.047032276622593884 0.1775985045614481 0.0809848690221809 0.6943843497937771;;; 0.5886873341187724 0.1918457475593868 0.17240032706651848 0.04706659125532241; 0.27629965819575314 0.4717560982600045 0.07731156187358716 0.1746326816706553; 0.1874079464089642 0.12337190379840313 0.505628497007749 0.1835916527848836; 0.04726201155740169 0.17764228564971346 0.08100458503757119 0.6940911177553137;;; … ;;; 0.5839921989971251 0.19455414318442701 0.1736203837124747 0.047833274105973295; 0.2753591387297734 0.4730028138631222 0.07675060216790908 0.17488744523919533; 0.1886995358080815 0.12492728775198556 0.5027923864429884 0.1835807899969447; 0.04610091657866967 0.17741031768242926 0.08093767132697106 0.69555109441193;;; 0.5849693064648621 0.19397121053352123 0.1733839095214479 0.047675573480168695; 0.2755813657861573 0.4727397470762202 0.07686274949864871 0.17481613763897388; 0.18845719968847927 0.12460886060512172 0.503375529275158 0.183558410431241; 0.046335426705629436 0.1774593042549475 0.08094472055074053 0.6952605484886826;;; 0.5859275947493566 0.19340885802860475 0.17314353250417944 0.04752001471785907; 0.27578661001422516 0.47248345119641294 0.07697494813766144 0.1747549906517003; 0.18820676065259503 0.12429403773065185 0.5039508986969805 0.1835483029197725; 0.04656888744047196 0.177507004367115 0.08095493640386711 0.694969171788546], [399.9999999999999 399.9999999999999 … 399.9999999999999 399.9999999999999; 399.9999999999999 399.9999999999999 … 399.9999999999999 399.9999999999999; 299.99999999999994 299.99999999999994 … 299.99999999999994 299.99999999999994; 199.99999999999991 199.99999999999991 … 199.99999999999991 199.99999999999991], [0.981204193290502 0.9812908125120599 … 0.9810179366397906 0.9811132449126639; 0.6318560127737154 0.6317660105795291 … 0.632001224176564 0.6319344239791045; 0.3690616746903602 0.36872223418462086 … 0.36971886831497097 0.36939392154484957; 0.026908793631810566 0.02690024027960471 … 0.026922549254720613 0.026916230988091063;;; 0.7915683408556836 0.7924154485343424 … 0.7898677940752655 0.7907190379194332; 0.2449922497480503 0.24517745356331475 … 0.24462587149864382 0.2448083716283781; 0.4782029835290756 0.479237108871491 … 0.47618967168050447 0.47718707184483944; 0.048207330548945986 0.047918805082674126 … 0.048787492576015494 0.04849692227206452;;; 0.5343230801902145 0.5335775225111303 … 0.5357960675029726 0.5350626676917899; 0.014224216939775877 0.014064657600864401 … 0.01453676747800135 0.014381638914697441; 0.5062362539179782 0.5056224654459309 … 0.5074062444216632 0.5068309052897179; 0.06466305230091506 0.06476164313811256 … 0.06442526691919183 0.06455089382120187;;; 0.7878055742796023 0.78779469557356 … 0.7878185399923744 0.7878135231198522; 0.7156099646122924 0.7158604373813692 … 0.71506419757052 0.7153445335395191; 0.13232800362614858 0.13239258800188072 … 0.13220738459282216 0.1322662642117528; 0.0775981082673 0.07759142821735175 … 0.0776137979674865 0.07760556551497431;;; 0.8549561148126898 0.8544833250637102 … 0.8558620026198622 0.8554156869043983; 0.8262370198394501 0.8262481706985608 … 0.8261584891323143 0.8262071255926541; 0.17445362945268325 0.17356040120152652 … 0.17622599235674383 0.17534227891610607; 0.11948912439322579 0.11898301563639768 … 0.12050093567208392 0.11999515335898425;;; 0.6394712512012005 0.6386268039698725 … 0.6412314495412182 0.6403395792305694; 0.013296619703695634 0.013339967653457244 … 0.013224622055860898 0.013258181160646634; 0.1946869517031334 0.1942276805272398 … 0.19575780973798268 0.19519694607922408; 0.007371650663383988 0.007397948214103464 … 0.007329052841301432 0.007348693439971094;;; 0.38599822874904266 0.3862176634781505 … 0.38552340099558813 0.38576678247405644; 0.14981243057881707 0.15018873705983374 … 0.14900948053643065 0.14941926865268618; 0.6829377652841341 0.6841002009067234 … 0.6804497882346948 0.6817209438423524; 0.1740163884638914 0.17483767459542338 … 0.17231624755516536 0.17317574616400355;;; 0.8751882956514617 0.8753066270870409 … 0.8748596457874008 0.8750393184875981; 0.7093649825160315 0.7085134702213626 … 0.7109860202525065 0.7101892042840131; 0.4482237702465888 0.4479466727131397 … 0.44864320842326694 0.44845597602253306; 0.17060120137503554 0.1706570926894769 … 0.17048021167881486 0.17054223439981692;;; 0.9668955475743061 0.9668602584221143 … 0.9669308432320655 0.9669190700919472; 0.48205567026112095 0.4814076210450356 … 0.4833349061772758 0.4826981629778728; 0.4397959969034393 0.4400901618948835 … 0.4391181875934662 0.4394719688071532; 0.06219220554468967 0.06238591802413049 … 0.061813466609265615 0.062001376857798246;;; 0.9606177698931939 0.9607336528873963 … 0.9603723495777171 0.9604973362334264; 0.7961338087455658 0.7958462731779405 … 0.7966684013758293 0.7964078651557976; 0.20731207173841776 0.20674441722856465 … 0.20839606759003323 0.20786271160424036; 0.030625319637750413 0.030412815971579337 … 0.031045551578968034 0.030836269355334896;;;; 0.9689564660564415 0.9690454310841159 … 0.9687671023898652 0.9688636911866174; 0.7763887252094845 0.7764638550800831 … 0.7761965786074447 0.7762996282505776; 0.5504124018185422 0.5512404654591132 … 0.5487015216536593 0.5495660085976319; 0.15011159796663534 0.14982739300486647 … 0.15064967139139873 0.15038573343008815;;; 0.8889463896455145 0.8890650639632608 … 0.8886868004241641 0.88882029667378; 0.5270649438196356 0.5271292658637625 … 0.5268707682948084 0.526978769904136; 0.7228426031202002 0.7240061641469183 … 0.7204968529148764 0.7216727231808499; 0.25401289436679353 0.2543385873229716 … 0.2532982828214277 0.25366607282092923;;; 0.6399035220036322 0.6394191162558177 … 0.6408516817867366 0.6403810871712969; 0.05466359297320712 0.05504851790430137 … 0.05389051829809363 0.054277535970130936; 0.7438251516632406 0.7436905012041249 … 0.7440337421051422 0.7439395706206915; 0.3038257049369265 0.3033572714303543 … 0.30457451398536545 0.3042315398449815;;; 0.9503633189565173 0.9501516109981102 … 0.9507614441173076 0.9505665860330699; 0.8703535987047757 0.8705855864366154 … 0.8698649670058086 0.8701133810863639; 0.4549636699049926 0.4556395312068459 … 0.45361290418598016 0.4542880604270206; 0.35893536108531804 0.35867193849409207 … 0.3594348816228932 0.3591897033525315;;; 0.908462184428282 0.9085202554682058 … 0.9083313284433754 0.9083992055805166; 0.8445230615954207 0.8443137056532946 … 0.8449304015123135 0.8447286431796033; 0.39283085767011006 0.39226131887810417 … 0.39394793592659655 0.3933931228879964; 0.30238542275323305 0.30132815130137 … 0.30449415105036565 0.3034408700567136;;; 0.8038218814063588 0.8032565010152205 … 0.8050029294898959 0.8044041217978656; 0.2093178470329328 0.20993392823888662 … 0.20809618157380658 0.20870520940786683; 0.5803495130504318 0.5793453587210353 … 0.5824868051473369 0.5813967980939245; 0.06907350936513561 0.06894232714727759 … 0.06938414851427148 0.06922076629827364;;; 0.5742759602690773 0.573809289424832 … 0.5752168935438223 0.574745208763028; 0.41592689017169243 0.41623050234976355 … 0.41523107637877826 0.41559370851778216; 0.81821334755681 0.8182368794009945 … 0.8181060094910467 0.8181697237157903; 0.5222788694958055 0.5225718445494665 … 0.5215943684057911 0.52195301390622;;; 0.9353371502254967 0.9353077216166261 … 0.9353449023498951 0.9353495419822009; 0.8196976274487321 0.8195004667669836 … 0.8200291881287015 0.8198738693487918; 0.6249419353471058 0.6236308843461217 … 0.6274314862119983 0.6262088743831032; 0.3279281392385863 0.3282345179958008 … 0.3273451420672564 0.3276316559522611;;; 0.9648493785975618 0.964861808665476 … 0.9647963316909456 0.9648275564093581; 0.7504705979097556 0.7501917580396484 … 0.7509622819929822 0.7507274494712832; 0.6651285421047392 0.6654161900736137 … 0.6644319237825781 0.6648004405951912; 0.24873106845736537 0.2498502630776516 … 0.24646992991376152 0.24760414512563886;;; 0.9511381939282202 0.9513554910574059 … 0.9506882177078732 0.9509157667997336; 0.7768635099892117 0.7768240722999208 … 0.7769361888719322 0.7769008856052156; 0.352120726537833 0.35254264214965053 … 0.35122509080974584 0.3516814894315135; 0.14284380537233837 0.142185628633716 … 0.1441118016708579 0.14348599401313997], [0.0 389.921602477971 … 309.5235737796454 184.31480663310447; 389.921602477971 0.0 … 348.06246435157544 571.8796662997325; … ; 309.5235737796454 348.06246435157544 … 0.0 411.99332545145717; 184.31480663310447 571.8796662997325 … 411.99332545145717 0.0])

Fit the spatial HMM with EM

fit_mle! runs the EM algorithm for ARPeriodicHMMSpatial. It updates the transition parameters θᴬ, the Bernoulli emission parameters θᴮ, and the spatial range parameters θᴿ jointly.

The solver keyword specifies the inner optimiser used for the range update step (M-step for R).

For time sake in this tutorial, we load the fitted model but show bellow the code to run the EM algorithm (that can take an hour or so).

solver = OptimizationOptimJL.LBFGS(linesearch=LineSearches.BackTracking())

@time "FitMLE HMMSpa (EM)" history, all_θᴬ_iter, all_θᴮ_iter, all_θᴿ_iter = fit_mle!(hmm_spa_init, θq_fit_ind, θy_fit_ind, θᴿ, Y, Y_past; solver=solver, n2t=n2t, maxiter=100, tol=1e-3, maxiters_R=100, display=:iter, tdist=tdist, QMC_m=100);
JLD.save(joinpath(pkgdir(StochasticWeatherGenerators), "assets", "tuto_3", "hmm_fit_K_4_d_1_m_1.jld"), "history", history, "all_θq_iter", all_θᴬ_iter, "all_θy_iter", all_θᴮ_iter, "all_θr_iter", all_θᴿ_iter);
hmm_infos = load(joinpath(pkgdir(StochasticWeatherGenerators), "assets", "tuto_3","hmm_fit_K_$(K)_d_$(𝐃𝐞𝐠)_m_$(local_order).jld"))

history = hmm_infos["history"]
all_θq_iter = hmm_infos["all_θq_iter"]
all_θy_iter = hmm_infos["all_θy_iter"]
all_θr_iter = hmm_infos["all_θr_iter"]
98-element Vector{Matrix{Float64}}:
 [5.991464547107982 0.0 0.0; 5.991464547107982 0.0 0.0; 5.703782474656201 0.0 0.0; 5.298317366548036 0.0 0.0]
 [5.4690190071854445 0.059664451966169776 0.046313849797367905; 5.536484796194368 0.05459766304270743 0.008870526045881816; 5.3139093459245865 0.04283802694180259 -0.0006079029179229511; 5.2040267682423424 0.006542213615306669 0.002157091539957415]
 [5.413935431116865 0.09198724398824455 0.07919373114006467; 5.483780650248829 0.07418307161185479 0.006570954830912291; 5.284962635729483 0.06154664523466446 -0.002345841133248412; 5.286450486214157 0.014291459178040125 -0.007899318457846827]
 [5.40711481109 0.11482825137470037 0.1028978396293871; 5.477547106647169 0.08859955325406654 0.0029485661622448904; 5.2856991121622725 0.07064267263554123 -0.0019422755017369866; 5.345619133587426 0.023202936174086353 -0.018965287762446943]
 [5.41348122360217 0.13122878211868386 0.11938153261758681; 5.487962627390281 0.09737395753765742 -0.0003034865696559217; 5.296496950288462 0.07287919931360726 -0.001956277379531926; 5.387445527806271 0.029823189568418153 -0.029012859589955024]
 [5.424658435149038 0.14363419299285218 0.13073972174943158; 5.5032513130740135 0.10250847937182782 -0.002626102431203626; 5.310118452018988 0.07152884514648129 -0.002951829577820015; 5.416755372695579 0.03407525396961199 -0.03783793225148907]
 [5.437737796322656 0.15317511942795092 0.13829351426923717; 5.518813511941439 0.10550936073162553 -0.004040937486514435; 5.323728566061175 0.06841766432655239 -0.004756363281510799; 5.436802037928841 0.036463299565384424 -0.045499989817186164]
 [5.4514263526956315 0.16069213696649934 0.1433223043134982; 5.532901479524557 0.10721558370265732 -0.004790576384520309; 5.336267974690447 0.06463052232252621 -0.007124415775654488; 5.449681294664917 0.03723636339072183 -0.05241901507901049]
 [5.464970736969991 0.16657416037004452 0.14660367750643527; 5.545070230463024 0.10814362951150004 -0.00504499040115742; 5.347357660334403 0.060751787227766446 -0.009813761690158835; 5.457168990569736 0.03687286621142289 -0.05887410412902246]
 [5.477966521045452 0.17131596722030198 0.14859425784557276; 5.555264291990889 0.10855191086154137 -0.0050311640493755465; 5.356984806137457 0.056947881254111425 -0.012686524483065202; 5.460487936827255 0.03552145207900378 -0.06495972024328239]
 ⋮
 [5.673971782736763 0.16823950501616575 0.07675604246876147; 5.579493718074805 0.08476015888729004 0.01517240808979464; 5.424998988860152 0.01234169314110253 -0.06525637336094295; 5.241251922337612 -0.00795893137893335 -0.19623455450799623]
 [5.674395145800812 0.16802027896387295 0.07638725225667153; 5.579325221866681 0.08467703537146572 0.015343150078286613; 5.425101158396522 0.012362875327934193 -0.06517814709519562; 5.240809471136296 -0.007681222390140554 -0.19608895371255392]
 [5.674751094622273 0.16774380025745286 0.07605855322439481; 5.57916944888232 0.08466422013396262 0.015500457415509273; 5.425190241552429 0.012383148003221035 -0.06511130123433233; 5.240361938492231 -0.007514930347583752 -0.19606946914196965]
 [5.675127173953059 0.16748791450947786 0.0756434947657592; 5.57906856587662 0.08471945997846086 0.015649386713243563; 5.425195685251828 0.012258895211275565 -0.06505934062389492; 5.239863627365442 -0.007382734441517099 -0.19587249492390346]
 [5.67553918079923 0.16720808650147737 0.07526937334500725; 5.578872471431595 0.08474112769751813 0.01576733355712128; 5.425291728483191 0.012248255763811973 -0.06499505252294605; 5.2394778184918245 -0.007241907314252809 -0.19572409490347006]
 [5.675882786723141 0.16700141338114893 0.07492974008352235; 5.578731848928549 0.08473997421478148 0.015884756403027056; 5.425370319133446 0.012232105492969415 -0.06491325701705647; 5.239079018924714 -0.007129326607217901 -0.19548171422392382]
 [5.676265622939543 0.16675003770511476 0.07449180500467632; 5.578602424916361 0.08473299634504505 0.016035764813752372; 5.4254414291885995 0.012245125312351642 -0.06484275619034205; 5.238637856685405 -0.006968244240148778 -0.1952646704069948]
 [5.676649484093848 0.1664740139255058 0.07410612916115275; 5.578427657837047 0.08475418977790258 0.016191760410145143; 5.425541232624186 0.012189755028202381 -0.06483525460035756; 5.238257793059182 -0.006729281871868191 -0.19502385947728162]
 [5.677031078334193 0.16620114113573728 0.07378120475456172; 5.578234216034882 0.08478993220296098 0.01627605742235997; 5.425573999715357 0.012154760731925372 -0.06480323278598303; 5.237884444958234 -0.006617106082417203 -0.19478470877521853]

In classic EM algorithm, the log-likelihood is guaranteed to increase at each iteration. However, here a modified EM (see paper) and 1) increase was not demonstrated theoretically (though it might be true) 2) the spatial likelihood is estimated with a quasi-Monte Carlo method, which adds some noise to the likelihood estimation. Therefore, it is possible to observe some non-monotonicity in the log-likelihood convergence curve.

Hence, we recover the iteration with the highest log-likelihood:

iter_best = argmax(history["logtots"])
26
history["logtots"][iter_best]
-115271.96506707612

Reconstruct the best model from the stored parameter iterates:

hmm_spa = Trig2ARPeriodicHMMSpatial(fill(1 / K, K), all_θq_iter[iter_best+1], all_θy_iter[iter_best+1], all_θr_iter[iter_best+1], T, my_distance)
ARPeriodicHMMSpatial{Float64, Matrix{Float64}}([0.25, 0.25, 0.25, 0.25], [0.767559023438987 0.09467892170464827 0.12403055213761861 0.013731502718746277; 0.21083616478694173 0.6033499334827024 0.05334194079071332 0.13247196093964253; 0.19202010739585965 0.06712515721208757 0.6539654060318981 0.08688932936015469; 0.0038140718354891783 0.1590983967767135 0.08251293499275178 0.7545745963950455;;; 0.7687240623839193 0.09380384874706302 0.12379446049300602 0.013677628376011627; 0.21076541545444524 0.6032480999325754 0.05323438169184971 0.13275210292112963; 0.1918810219984983 0.0670203697626611 0.6539434282780889 0.08715517996075167; 0.003974408893466103 0.1590856709558567 0.08244688393403533 0.7544930362166419;;; 0.769868232679482 0.09295395291140833 0.12355734561296425 0.0136204687961454; 0.21068249448010365 0.6031507825418145 0.053126789517481635 0.13303993346060008; 0.19172075054154925 0.06692059718559706 0.6539216344415666 0.08743701783128713; 0.004142721643702803 0.1590688409058879 0.08238303629049448 0.7544054011599147;;; … ;;; 0.7639384757987605 0.09745759409408586 0.12473115051215962 0.013872779594994004; 0.21097519842643336 0.6036825861667379 0.053664120138469 0.1316780952683596; 0.19230974182128513 0.06746963273881143 0.6540334015604585 0.08618722387944501; 0.00337729723640714 0.15911255622734277 0.08272449974164821 0.7547856467946018;;; 0.7651662532722937 0.09650555480215096 0.12449905312003344 0.01382913880552188; 0.21094106961487585 0.6035671740376807 0.05355684026291835 0.13193491608452512; 0.19223450760287578 0.06734978783160668 0.6540103073811603 0.08640539718435727; 0.003515862314442951 0.1591117801199384 0.08265172573488207 0.7547206318307366;;; 0.7663730945972355 0.09557941056712295 0.12426546796876681 0.013782026866874821; 0.21089472147255642 0.6034562901690941 0.05344943701467648 0.1321995513436731; 0.19213795107238138 0.06723496268845262 0.6539876688628812 0.08663941737628482; 0.003661340940061351 0.15910707983310846 0.08258120955232054 0.7546503696745096], [328.23765192426004 328.9441000045342 … 326.7739197611823 327.51414782227357; 298.38751835012874 298.3787237138492 … 298.378385413023 298.3874055687413; 229.1257525670271 228.91902558548043 … 229.5354170863646 229.33123783832707; 208.1274213502327 207.56728200024403 … 209.25470955202746 208.68994895584845], [0.9348073548404042 0.9341931436068037 … 0.9359904837899334 0.9354064293925282; 0.3813541175976695 0.3809216872024698 … 0.3822500673451897 0.3817969501870455; 0.3594778895271648 0.35797119014819184 … 0.36248768582441193 0.36098355155392564; 0.022827162918005267 0.022829133866586783 … 0.022819169062341525 0.022823840798263936;;; 0.6320245055992711 0.6321851356274519 … 0.6317340750508066 0.6318741355348824; 0.18185276075182363 0.18174732817448183 … 0.18207323859229035 0.18196140676601458; 0.4153170815058899 0.4153761171937007 … 0.415265844869202 0.4152803210243155; 0.04368621078508337 0.043274314797229874 … 0.044517627697465305 0.044100689977432043;;; 0.3474898785697189 0.34683650405654326 … 0.34881840305517664 0.3481505712584414; 0.012639090086682379 0.012227665670787303 … 0.01349543132103527 0.013061658144137555; 0.4341377593584785 0.43348882718314574 … 0.43537711225959613 0.43476725684250017; 0.09346102282925398 0.09327700853005556 … 0.0937769269939548 0.09362770680954002;;; 0.820443411935189 0.8187216144122847 … 0.8238154002248941 0.8221414144174151; 0.5840731506627309 0.5849917819075571 … 0.5822205196766775 0.5831493066485522; 0.1570108603520087 0.15641636819843593 … 0.158220100528554 0.1576121475743228; 0.044765884166491555 0.044676380659756286 … 0.0449563725657273 0.04485921663375821;;; 0.843523231248476 0.8417989104581218 … 0.8468881574763426 0.8452196794869306; 0.6667341610165263 0.6670001690065178 … 0.6661724581193191 0.6664582342756105; 0.22531037324201 0.22366090516970763 … 0.2285958105545453 0.22695557311590625; 0.07414308944676219 0.07369058906309107 … 0.07506639645492746 0.07460171318636814;;; 0.45692069468394353 0.4556864562917136 … 0.4594797583695066 0.4581852454907993; 0.011241919718275224 0.011249800665057992 … 0.011239432506026128 0.011238464670029156; 0.16254774701944363 0.1618649788489684 … 0.16403548380631028 0.16327118197708135; 0.012310725580006524 0.012319430273961181 … 0.01230770498868348 0.01230681827071432;;; 0.2896087571593473 0.2897716673722951 … 0.28927914465298404 0.2894445663417315; 0.17580659173686822 0.17637890670879647 … 0.17459111135106978 0.17521053462153524; 0.7096325876752203 0.7108093870393337 … 0.7070921084410281 0.7083935181230063; 0.15618237763729098 0.15668641822435037 … 0.155126787550011 0.1556624034725764;;; 0.8764579455905476 0.8762905261430822 … 0.8767040295406365 0.876595765335897; 0.5438180974112339 0.5420291219379357 … 0.5473652357039731 0.545596985718606; 0.4908809359181455 0.4896217683182636 … 0.49321542266434154 0.49207894800545576; 0.10467815239141683 0.10498744935309126 … 0.10407626994127375 0.10437440886762529;;; 0.9770346303031243 0.9767227536866858 … 0.9776201883756921 0.9773336757235316; 0.2819630094038478 0.281090490861201 … 0.28375252748679375 0.28285041837496855; 0.4235519769653024 0.4226470958664208 … 0.42525394491948193 0.4244210334519205; 0.03569582429545654 0.035842369015778794 … 0.03541675693893571 0.035553956139540766;;; 0.8962827052961654 0.8951480653527939 … 0.898488503654336 0.8973961697376457; 0.5056278486971211 0.5054459033268835 … 0.5060074345038251 0.5058150442074947; 0.24909388112173436 0.2473899844821306 … 0.2524837822306643 0.25079204870706684; 0.025683625762829426 0.0254953008805221 … 0.02606308950415488 0.025872907219339;;;; 0.9037484125307589 0.9034017800647357 … 0.9044256186855467 0.9040897111739259; 0.6162423854812953 0.6164100751696614 … 0.6158871755970161 0.6160680696118132; 0.5562544238124011 0.5558372252841609 … 0.5570709183520384 0.5566656943072682; 0.14319418056899633 0.14263996183986066 … 0.14427380256431216 0.14373888265277024;;; 0.784138228351258 0.7838392302145345 … 0.7847265065581408 0.7844340132528441; 0.497844091682584 0.4978492642285879 … 0.4977576736266438 0.497813558468909; 0.6518037968068441 0.6526968396765908 … 0.6500375313612954 0.6509172628781618; 0.2759456969646821 0.27506728248595547 … 0.27758885879788026 0.2767863803324831;;; 0.5078008667870108 0.5076475902991311 … 0.508092190717578 0.5079490814475704; 0.10242443688053558 0.1033474715475621 … 0.10059374345712427 0.10150643401202503; 0.7100275817259448 0.709713470493838 … 0.7105788253510802 0.7103160467090163; 0.4050934062872684 0.4034918285155754 … 0.4080992715141115 0.40662946204141437;;; 0.9258867724663931 0.925303738957932 … 0.9270135631267042 0.9264566978762422; 0.7523530927194626 0.752861681093296 … 0.7513269649814128 0.7518414733868082; 0.45818816461749 0.45845968571430534 … 0.4576708427538735 0.4579251918435528; 0.2773219786735854 0.2761577482409735 … 0.27965483262075 0.2784877948047765;;; 0.8707975113843859 0.8704177909868437 … 0.8715381441251536 0.8711709854543143; 0.6904655899976114 0.6904368216886879 … 0.690547932699306 0.6905026311859496; 0.4884234080361096 0.4870956004869056 … 0.4910569999044186 0.4897440112473475; 0.24218190708828832 0.2400765266628731 … 0.24642357973468887 0.244297822599639;;; 0.6711589606225804 0.6709217229173516 … 0.6716758288647573 0.6714103595502812; 0.27797212194994975 0.27809380876090994 … 0.277704785885667 0.2778424326132622; 0.4953959782671841 0.49418790144727753 … 0.49792528179952034 0.4966418977811057; 0.11113860225567392 0.11070589097712169 … 0.11206935776837294 0.1115930625473223;;; 0.4822324160952863 0.4822964355126163 … 0.482118885302286 0.48217322691766634; 0.4553870554910671 0.4556716353141577 … 0.4547035979405455 0.4550643401323626; 0.7890492478915653 0.789187757498469 … 0.7887056481657285 0.7888885413214533; 0.5541840465401285 0.5541289060908065 … 0.5541887310617594 0.5542039898484235;;; 0.9304225585944459 0.9302235412028509 … 0.9307687493750644 0.9306042714891303; 0.6595101481545503 0.6590117917560242 … 0.6604836012268916 0.6600007945912224; 0.6442588269351924 0.6420464548339606 … 0.6485130226381478 0.6464144455037454; 0.2073420565199092 0.20787065210958067 … 0.20636737114496218 0.20684096122185316;;; 0.9417036774612603 0.9414495453341682 … 0.9421756927064182 0.9419457058728926; 0.5146258214354775 0.5139000841248375 … 0.5160761119007912 0.5153512362731908; 0.6598831746859283 0.6589770084934783 … 0.6615678383974887 0.6607468197373554; 0.22381892993437194 0.22549870915800357 … 0.2204773059363222 0.22214494689169226;;; 0.8759696011292626 0.8758419921157706 … 0.8762151436202688 0.8760939944751039; 0.5747770070178182 0.5743443381541969 … 0.5756676806174706 0.5752181670457578; 0.4657677950906215 0.4650156887680011 … 0.467253680529919 0.46651386801557926; 0.19215965878434602 0.19117802896403285 … 0.19405364932798075 0.19311839389699043], [0.0 389.921602477971 … 309.5235737796454 184.31480663310447; 389.921602477971 0.0 … 348.06246435157544 571.8796662997325; … ; 309.5235737796454 348.06246435157544 … 0.0 411.99332545145717; 184.31480663310447 571.8796662997325 … 411.99332545145717 0.0])

Log-likelihood convergence

begin
    p_logtots = plot(history["logtots"], xlabel="EM iteration", ylabel="Log-likelihood", title="Convergence of the spatial HMM EM", legend=:none, lw=2)
    vline!(p_logtots, [iter_best], c=:red, s=:dash, label="best iter")
end
Example block output

Visualisation of the fitted model parameters

Transition matrix

begin
    pA = [plot(legendfont=14, foreground_color_legend=nothing, background_color_legend=nothing, legend_columns=4, tickfont=12, legendfontsize=16) for k in 1:K]
    for k in 1:K
        [plot!(pA[k], hmm_spa.A[k, l, :], c=my_color(l, K), label=L"Q_{%$(k)\to %$(l)}", legend=:top, lw=1.75) for l in 1:K]
        hline!(pA[k], [0.5], c=:black, label=:none, s=:dot)
        xticks!(pA[k], vcat(dayofyear_Leap.(Date.(2000, 1:12)), 366), vcat(string.(monthabbr.(1:12)), ""), xlims=(0, 367), ylims=(0, 1))
    end
    pallA = plot(pA..., size=(1000, 500))
end
Example block output

Spatial range $R(t)$

The seasonal range $R_k(t)$ controls the spatial correlation length for each hidden state $k$. A larger range means stronger spatial dependence between stations.

begin
    pr = plot(title="Spatial range per hidden state", ylabel="Range (km)", tickfont=12, legendfontsize=14)
    for k in 1:K
        plot!(pr, 1:T, hmm_spa.R[k, :], c=my_color(k, K), label=L"k = %$k", lw=2)
    end
    xticks!(pr, vcat(dayofyear_Leap.(Date.(2000, 1:12)), 366), vcat(string.(monthabbr.(1:12)), ""), xlims=(0, 367))
end
Example block output

Rain occurrence probabilities $\mathbb{P}(Y = \text{wet} \mid Z = k, H = h)$

begin
    mm = 1 # h = 1: day before was dry
    jt = D
    pB = [plot(legendfont=14, title="$(station_name[j])", titlefontsize=17, tickfont=14, legendfontsize=16) for j in 1:jt]
    for j in 1:jt
        [plot!(pB[j], hmm_spa.B[k, :, j, mm], c=my_color(k, K), label=islabel(j, 3, L"\mathbb{P}(Y = \textrm{wet}\mid Z = %$k, H = \textrm{dry})"), lw=2) for k in 1:K]
        hline!(pB[j], [0.5], c=:black, label=:none, s=:dot)
        xticks!(
            pB[j],
            vcat(dayofyear_Leap.(Date.(2000, 1:12)), 366),
            vcat(string.(first.(monthabbr.(1:12))))
        )
        xlims!(pB[j], (0, 367))
        ylims!(pB[j], (0, 1))
    end
    pallB = plot(pB[staid_lat]..., size=(3000 / 2, 1000 / 1), layout=(2, 5))
end
Example block output

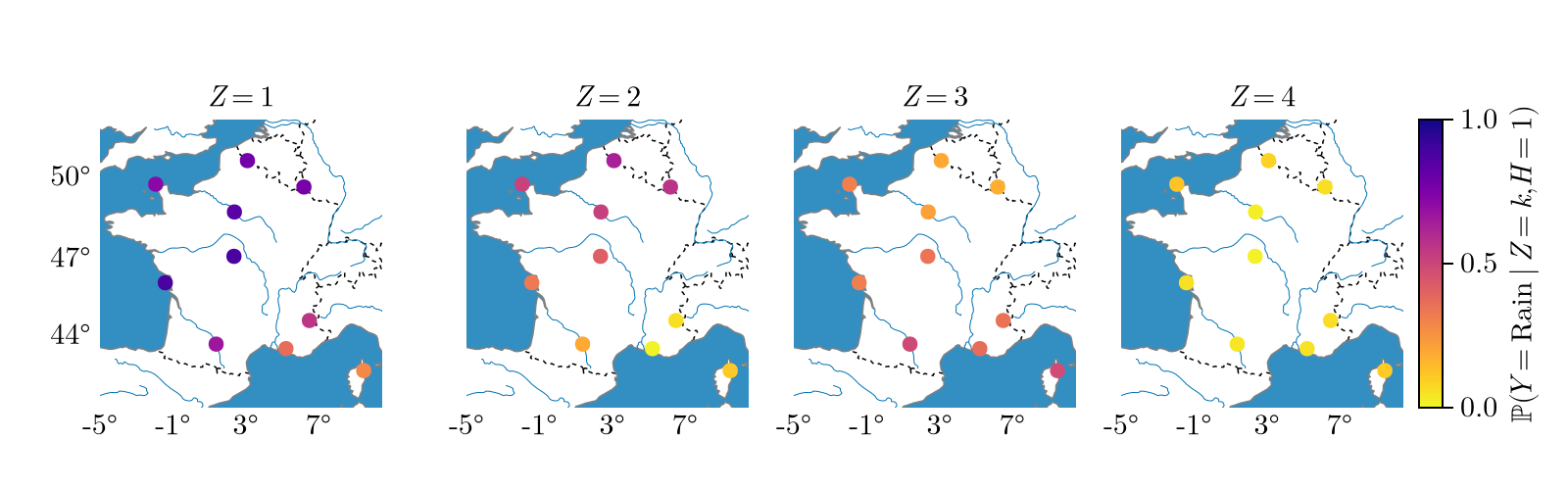

Spatial map of mean rain probability

memory_past_cat = 1
1

Mean rain probability per hidden state $k$: $\overline{\mathbb{P}}(Y = \text{Rain}\mid Z = k, H = 1)$

p_FR_map_mean_prob = map_with_stations(LON_idx, LAT_idx, [[mean(hmm_spa.B[k, :, j, memory_past_cat]) for j in 1:D] for k in 1:K], colorbar_show=true, colorbar_label=L"\mathbb{P}(Y = \text{Rain}\mid Z = k, H = 1)", precision_scale=precision_scale)
Example block output

Inference of the historical hidden states

Viterbi algorithm

ẑ = viterbi(hmm_spa, Y, Y_past; n2t=n2t, QMC_m=QMC_m)

ẑ_per_cat = [findall(ẑ .== k) for k in 1:K]
4-element Vector{Vector{Int64}}:
 [1, 8, 9, 10, 11, 12, 14, 15, 16, 17  …  23358, 23359, 23360, 23361, 23362, 23364, 23365, 23366, 23367, 23368]
 [2, 18, 19, 20, 21, 34, 35, 36, 37, 38  …  23290, 23291, 23292, 23294, 23295, 23296, 23297, 23369, 23370, 23371]
 [6, 7, 13, 31, 40, 41, 42, 45, 46, 47  …  23337, 23338, 23339, 23345, 23346, 23347, 23348, 23349, 23350, 23363]
 [3, 4, 5, 32, 33, 53, 54, 55, 56, 57  …  23270, 23271, 23272, 23273, 23274, 23372, 23373, 23374, 23375, 23376]

Visualisation of the historical sequence of hidden states

year_range = unique(year.(data_stations[1][1+local_order:end, :DATE]));

idx_year = [findall(x -> year.(x) == m, data_stations[1][1+local_order:end, :DATE]) for m in year_range];

select_year = unique(sort([4:10:length(year_range); 21; 48; 64]))

begin
    year_nb = length(select_year)
    z_hat_mat = zeros(year_nb, 366)

    for (i, y) in enumerate(select_year)
        if isleapyear(year_range[y])
            z_hat_mat[i, :] = ẑ[idx_year[y]]
        else
            z_hat_mat[i, :] = [ẑ[idx_year[y]]; 0]
        end
    end
    thick = 1
    heatmap(z_hat_mat, colorbar=:none, c=my_palette(K), minorticks=:false, framestyle=:xbox, grid=:none, thickness_scaling=thick)
    xticks!(vcat(dayofyear_Leap.(Date.(2000, 1:12)), 366), vcat(string.(monthabbr.(1:12)), ""), xlims=(0, 367), xtickfontsize=14 / thick, ytickfontsize=14 / thick)
    hline!((1:year_nb) .+ 0.5, c=:black, legend=:none, lw=4)
    ylims!(0.5, year_nb + 0.5)
    pviterbi = yticks!(1:year_nb, string.(year_range[select_year]), size=(1000, 600))
end
Example block output

Sample the spatial HMM model and output the sequence of hidden states and multi-site dry/wet.

Nb = 1000

begin
    zs = zeros(Int, N, Nb)
    ys = zeros(Bool, N, D, Nb)
    @time "Simulations Z, Y (spatial HMM)" for i in 1:Nb
        zs[:, i], ys[:, :, i] = rand(hmm_spa, n2t; y_ini=Yall[1:local_order, :], z_ini=1, seq=true)
    end
end
Simulations Z, Y (spatial HMM): 225.419952 seconds (374.99 M allocations: 59.790 GiB, 5.86% gc time, 0.32% compilation time)

The WGEN model

We will compare to the WGEN model that propose Markov chain of order 4 for rain occurrences (fitted monthly) and laten gaussian model for multisite occurrences (fitted monthly).

  • Wilks, D. S. "Multisite generalization of a daily stochastic precipitation generation model". Journal of Hydrology, (1998). https://doi.org/10.1016/S0022-1694(98)00186-3.
  • Srikanthan, Ratnasingham, et Geoffrey G. S. Pegram. "A nested multisite daily rainfall stochastic generation model". Journal of Hydrology 2009. https://doi.org/10.1016/j.jhydrol.2009.03.025.
wgen_order = 4
idx_months = [findall(x -> month.(x) == m, data_stations[1][1+local_order:end, :DATE]) for m in 1:12]
wgen4_model = fit_wgen(Y, idx_months, wgen_order)

ys_wgen = similar(ys)
@time "Simulation Y wgen 4" for i in 1:Nb
    ys_wgen[:, :, i] = rand(wgen4_model, 1956:2019; Y_ini=vcat(rand(Bool, wgen_order - local_order, D), Y_past))
end
Simulation Y wgen 4: 118.206508 seconds (1.90 G allocations: 66.160 GiB, 6.35% gc time)

Non-spatial HMM simulations

Simulate from the independent (non-spatial) ARPeriodicHMM fitted in Step 1, for comparison.

ys_ind = similar(ys)
zs_ind = zeros(Int, N, Nb)
@time "Simulations Z, Y (HMM_ind)" for i in 1:Nb
    zs_ind[:, i], ys_ind[:, :, i] = rand(hmm_ind, n2t; y_ini=Yall[1:local_order, :], z_ini=1, seq=true)
end
Simulations Z, Y (HMM_ind): 55.533590 seconds (420.27 M allocations: 24.070 GiB, 6.38% gc time)

Results

Spell distribution

select_month to choose the month where to compute the spell distributions (summer month, winter, etc.) select_month = 1:12 corresponds to all months.

select_month = 1:12

idx_months = [findall(x -> month.(x) == m, data_stations[1][1+local_order:end, :DATE]) for m in 1:12]

idx_month_vcat = vcat(idx_months[select_month]...)

idx_all = [intersect(yea, mon) for yea in idx_year, mon in idx_months];
Historic spells
len_spell_hist = [pmf_spell(Y[idx_month_vcat, j], dw) for j in 1:D, dw in 0:1];
Simulation spells
len_spell_simu = [pmf_spell(ys[idx_month_vcat, j, i], dw) for i in 1:Nb, j in 1:D, dw in 0:1];

Dry spell

make_range(y, step=1) = range(extrema(y)..., step=step)

begin
    dry_or_wet = 1 # dry
    p_spell_dry = [plot(ylims=(1e-4, 1e-0), tickfont=11, legendfontsize=13) for j = 1:D]
    for j = 1:D
        all_spells = len_spell_simu[:, j, dry_or_wet]
        spell_range = 1:1:(1+maximum(vcat(reduce(vcat, all_spells), len_spell_hist[j, dry_or_wet])))

        errorlinehist!(p_spell_dry[j], all_spells, groupcolor=:grey, legend=:topright, label=islabel(j, staid_lat[[1]], L"Simu $q_{0,100}$"), norm=:probability, bins=spell_range, errortype=:percentile, percentiles=[0, 100], fillalpha=0.4, centertype=:median)

        errorlinehist!(p_spell_dry[j], all_spells, groupcolor=:red, label=islabel(j, staid_lat[[1]], L"Simu $q_{25,75}$"), norm=:probability, bins=make_range(reduce(vcat, all_spells)), errortype=:percentile, percentiles=[25, 75], fillalpha=0.5, centertype=:median)

        histo_spell = len_spell_hist[j, dry_or_wet]
        errorlinehist!(p_spell_dry[j], [histo_spell], label=islabel(j, staid_lat[[1]], "Obs"), groupcolor=:blue, lw=1.5, norm=:probability, bins=spell_range, errortype=:percentile, alpha = 0.8)
        xlims!(p_spell_dry[j], 0, 2 + maximum(1.5maximum.(histo_spell)))
        yaxis!(:log10)
    end

    [xlabel!(p_spell_dry[j], "Nb of days", xlabelfontsize=12) for j in staid_lat[6:10]]
    [ylabel!(p_spell_dry[j], "PMF", ylabelfontsize=12) for j in staid_lat[[1, 6]]]
    [title!(p_spell_dry[j], station_name[j], titlefontsize=13) for j = 1:D]
    pall_spell_dry = plot(p_spell_dry[staid_lat]..., size=(3000 / 2.5, 1000 / 1.5), layout=(2, 5), left_margin=0.5cm, bottom_margin=0.275cm)
end
Example block output

Wet spell

begin
    dry_or_wet = 2 # wet
    p_spell_wet = [plot(ylims=(1e-4, 1e-0), tickfont=11, legendfontsize=13) for j = 1:D]
    for j = 1:D
        all_spells = len_spell_simu[:, j, dry_or_wet]
        spell_range = 1:1:(1+maximum(vcat(reduce(vcat, all_spells), len_spell_hist[j, dry_or_wet])))

        errorlinehist!(p_spell_wet[j], all_spells, groupcolor=:grey, legend=:topright, label=islabel(j, staid_lat[[1]], L"Simu $q_{0,100}$"), norm=:probability, bins=spell_range, errortype=:percentile, percentiles=[0, 100], fillalpha=0.4, centertype=:median)

        errorlinehist!(p_spell_wet[j], all_spells, groupcolor=:red, label=islabel(j, staid_lat[[1]], L"Simu $q_{25,75}$"), norm=:probability, bins=spell_range, errortype=:percentile, percentiles=[25, 75], fillalpha=0.5, centertype=:median)

        histo_spell = len_spell_hist[j, dry_or_wet]
        errorlinehist!(p_spell_wet[j], [histo_spell], label=islabel(j, staid_lat[[1]], "Obs"), groupcolor=:blue, lw=1.5, norm=:probability, bins=spell_range, errortype=:percentile, alpha = 0.8)
        xlims!(p_spell_wet[j], 0, 2 + maximum(1.5maximum.(histo_spell)))
        yaxis!(:log10)
    end

    [xlabel!(p_spell_wet[j], "Nb of days", xlabelfontsize=12) for j in staid_lat[6:10]]
    [ylabel!(p_spell_wet[j], "PMF", ylabelfontsize=12) for j in staid_lat[[1, 6]]]
    [title!(p_spell_wet[j], station_name[j], titlefontsize=13) for j = 1:D]
    pall_spell_wet = plot(p_spell_wet[staid_lat]..., size=(3000 / 2.5, 1000 / 1.5), layout=(2, 5), left_margin=0.5cm, bottom_margin=0.275cm)
end
Example block output

Seasonal areal dry spells

RRmax = 0
ROR = [mean(r .> RRmax) for r in eachrow(Y)]
RORs = [[mean(r .> RRmax) for r in eachrow(rr)] for rr in eachslice(ys, dims=3)]
RORs_ind = [[mean(r .> RRmax) for r in eachrow(rr)] for rr in eachslice(ys_ind, dims=3)]
RORswgen = [[mean(r .> RRmax) for r in eachrow(rr)] for rr in eachslice(ys_wgen, dims=3)]

JJA = [6, 7, 8]
MAM = [3, 4, 5]
SON = [9, 10, 11]
DJF = [12, 1, 2]
SEASONS = [DJF, MAM, JJA, SON]
seasonname = ["DJF", "MAM", "JJA", "SON"]

idx_seasons = [findall(month.(data_stations[1][1+local_order:end, :DATE]) .∈ tuple(season)) for season in SEASONS]

let
    perc = 0.1
    QQ = [5, 95]

    p_spell_rors = [plot(ylims=(5e-4, 1e-0), xlims=(-0.01,25), tickfont=11, legendfontsize=13, legend=:left) for i in eachindex(idx_seasons)]
    xlabel!.(p_spell_rors[3:end], "Nb of days", xlabelfontsize=12)
    ylabel!.(p_spell_rors[[1, 3]], "PMF", ylabelfontsize=12)
    for m in eachindex(idx_seasons)
        len_ror_hist = pmf_spell(ROR[idx_seasons[m]] .≤ perc, 1)
        len_ror_simu = [pmf_spell(RORs[i][idx_seasons[m]] .≤ perc, 1) for i in 1:Nb]
        len_ror_simu_ind = [pmf_spell(RORs_ind[i][idx_seasons[m]] .≤ perc, 1) for i in 1:Nb]
        len_ror_simuwgen = [pmf_spell(RORswgen[i][idx_seasons[m]] .≤ perc, 1) for i in 1:Nb]

        errorlinehist!(p_spell_rors[m], [len_ror_hist], groupcolor=:blue, lw=2, norm=:probability, bins=make_range(len_ror_hist), errortype=:percentile,
        label=label = islabel(m, 1, "Obs"),
        legend=:bottom)
        yaxis!(:log10)

        sim_range = make_range(reduce(vcat, len_ror_simuwgen))
        errorlinehist!(p_spell_rors[m], len_ror_simuwgen, groupcolor=:green, legend=:topright,
            label=islabel(m, 1, "WGEN 4"),
            norm=:probability, bins=sim_range, errortype=:percentile, percentiles=QQ, fillalpha=0.25, centertype=:median, linewidth=2)

        sim_range = make_range(reduce(vcat, len_ror_simu_ind))
        errorlinehist!(p_spell_rors[m], len_ror_simu_ind, groupcolor=:grey, legend=:topright,
            label=islabel(m, 1, "HMM_ind"),
            norm=:probability, bins=sim_range, errortype=:percentile, percentiles=QQ, fillalpha=0.25, centertype=:median, linewidth=2)

        sim_range = make_range(reduce(vcat, len_ror_simu))
        errorlinehist!(p_spell_rors[m], len_ror_simu, groupcolor=:orange, legend=:topright,
            label=islabel(m, 1, "HMM_spa"),
            norm=:probability, bins=sim_range, errortype=:percentile, percentiles=QQ, fillalpha=0.3, centertype=:median, alpha=1, linewidth=2)
        annotate!(p_spell_rors[m], median(sim_range), 1.5, seasonname[m])
        yticks!(10.0 .^ (-4:-0))
    end

    pall = plot(p_spell_rors..., layout=(2, 2), size=(1000, 600), top_margin=0.34cm, left_margin=0.3cm, bottom_margin=0.22cm)
    file_name = "ROR_spell_season_perc_$(perc)_Q_$(QQ[1])_$(QQ[2])_no_inset"
    file_name = replace(file_name, "." => "p")
    pall
end
Example block output

Correlations

Rain event dry/wet
cor_bin_hist = cor(reduce(hcat, [df.RO for df in data_stations]));

cor_bin_mean_simu = mean(cor(ys[:, :, i]) for i in 1:Nb);

cor_bin_mean_simu_ind = mean(cor(ys_ind[:, :, i]) for i in 1:Nb);

cor_bin_mean_simu_wgen = mean(cor(ys_wgen[:, :, i]) for i in 1:Nb);

begin
    plots_cor_bin = [plot(-0.1:0.1:0.8, -0.1:0.1:0.8, aspect_ratio=true, label=:none, xlabelfontsize=16, ylabelfontsize=16, tickfont=11, legendfontsize=13) for _ in 1:1]
    scatter!(plots_cor_bin[1], vec_triu(cor_bin_hist), vec_triu(cor_bin_mean_simu), label="Correlations vs SHHMM-Spa", xlabel="Observations", ylabel="Simulations", c=:orange)
    # scatter!(plots_cor_bin[1], vec_triu(cor_bin_hist), vec_triu(cor_bin_mean_simu_ind), label="Correlations vs HMM", c=:gray)
    # scatter!(plots_cor_bin[1], vec_triu(cor_bin_hist), vec_triu(cor_bin_mean_simu_wgen), label="Correlations vs WGEN", c=:green)
    [xlims!(plots_cor_bin[i], -0.1, 1) for i in 1:1]
    [ylims!(plots_cor_bin[i], -0.1, 1) for i in 1:1]
    annotate!(0.2, 0.7, "MSE ≃ $(round(mean(abs2, vec_triu(cor_bin_hist) - vec_triu(cor_bin_mean_simu)), digits = 4))")
    plot_cor_bin = plot(plots_cor_bin...)
end
Example block output

This page was generated using Literate.jl.
